| Model Number | PT1725024DB12MP |
| Focal length | 50mm |
| Image sensor | 1/1.7" |
| Mount Type | M12 |
| Aperture | F2.4 |
| Resolution | 12megapixel |
| Back Focal Lens | 24.2mm(in air) |
| MBF | >6mm(in air) |

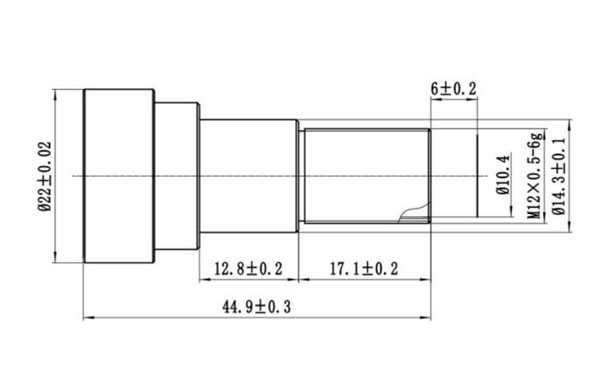

| Dimension | 22*44.9mm |
| M.O.D. | 0.3m |
| Relative illuminance | 70% |
| CRA | 8°@φ9.2mm |
| Operating temperature | -30℃～+70℃ |
| Iris | FIX |
| Focus | Manual |
| Zoom | / |
| IR Correction | NO |
| Coating Range | 400-700nm |
| Optical Distortion | 0.2%@φ9.2mm |
