Features:

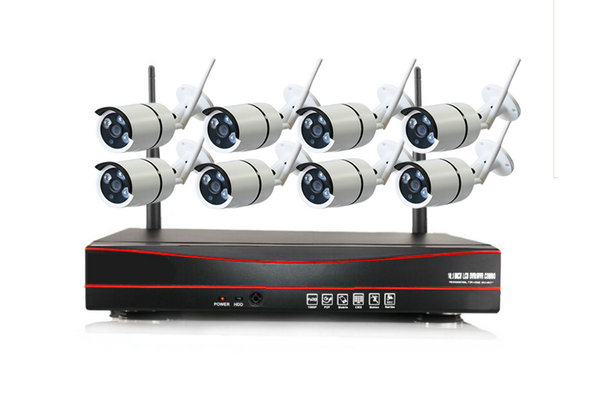

* 1080P/960P/720P Wireless Network Video Recorder
* Built-in WIFI module with high-performance and high stability
* Automatically Connection between NVR and IPC
* Support video preview/recording/playback/backup
* Support the mixed use of wireless and wire,support different scene
* Support Android/IOS/PC remote
* HD video output, up to 30m transmitting with 3 walls
* Automatic connection with IP camera, save installation cost
* Plug and play, P2P service
* Mobile viewing, iphone&android app
* H.264 Dual stream encoding
* 3.6mm HD lens;IR view distance: 30m(3pcs Dot IR LEDIR)
* Support Multi-Screen software and CMS
* Waterproof: IP66
* Meet with IEEE 802.11b/g/n wireless standard, WEP & WPA
| Model NO. | IPC-8Kit601W-Wifi-1.0MP | IPC-8Kit601W-Wifi-1.3MP | IPC-8Kit601W-Wifi-2.0MP |
| System | |||
| Operating system | Embedded LINUX OS | ||
| IP Camera | |||
| Sensor/DSP | 1/4" CMOS image sensor HI3518E+OV9712 | 1/3" CMOS image sensor HI3518C+AR0130 | 1/2.8" CMOS image sensor HI3516C+ IMX 322 |
| Max.image Resolution | 1280*720 | 1280*960 | 1920*1080 |
| Frame Rate | 30fps@720P | 30fps@960P | 30fps@1080P |
| Compression | H.264 | ||
| Day/Night | ICR | ||
| Min. Illumination | 0.1lux @ F1.2, AGC on, 0 lux with IR on | ||
| Lens | 3.6mm HD Lens | ||
| IR LED | 3pcs Dot IR LEDIR | ||
| IR Distance | 30m | ||
| Day&Night | Auto / Color / BW | ||
| White Balance | Auto | ||
| Mirror/Flip | On / Off | ||
| OSD | Date Time & Title | ||
| 3D-DNR | Auto | ||
| S/N | > 39.1 Db | ||
| Ingress Protection | IP66 | ||
| General Specification | Anti-thunder Level:Standard IEC61000-4-5 | ||
| Working Temperature/Humidity:-10℃ to +50℃ / 30% to 80% RH | |||
| Working Temperature/Humidity:-20℃ to +60℃ / 20% to 90% RH | |||
| Power Input:DC12V1A | |||
| Power consumption:≤6W | |||
| Size:205(L)×70(W)×55 (H)mm | |||
| Weight:500g | |||
| Network Video Recorder | |||
| Interface | 1 RJ45 Interface, 10/100 Self-adaption | ||
| Network video input broadbank | 40Mbps | ||
| Protocol | TCP/IP, UDP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP, NTP | ||
| Compliance | ONVIF Profile S | ||
| PC Client and Browser | IE6.0 and above, Google Chrome, Mozilla Firefox, Mac Safari | ||
| Mobile device | iPhone, iPad, Android Phone, Tablets | ||
| WIFI | Support Wifi Automaticlly connect WI-Fi Network camera | ||
| Video Out | |||
| HDMI 1ch，resolution：1024x768,1366x768,1440x900,1920x1080p | |||
| IP Camera Input | 8CH/30fps @ 720P; 30fps @ 960P; 30fps @ 1080P | ||
| UI | Support 24 Multi-Languages in UI. | ||
| Hard disk | Support 1sata * 4TB(Max) Hard disk | ||
| USB Interface | 2 USB 2.0 | ||
| Video Control | Video/Capture mode:Maual、Time、Motion、Alarm | ||
| Playback mode:Real time、Routine、Event | |||
| Backup | USB Backup | ||
| Others | Power Supply:DC12V3A | ||
| Power Consumption (W):≤5W（Without HDD） | |||
| Operate Temperature (°C): -10℃~+55℃ | |||
| Working Humidity (%) RH:10%~90% | |||
| Weight（excluding HDD）:≤9Kg | |||
| Kit include | |||
| 1 | 1 x 8ch WifiNVR(802.11b/g/n) | ||
| 2 | 8 x wireless IP Camera | ||
| 3 | 8 x 12V 1A Power Adapter | ||
| 4 | 1 x IR Remote controller | ||
| 5 | 1 x USB Mouse | ||
| 6 | CD,user manual,screws. | ||
| Carton: | 3sets a carton | ||
| Carton size: | 400*340*590mm | ||
| Net weight: | 18kg/carton | ||
| Gross weight: | 19kg/carton | ||
