Features:
H.264 & MJPEG dual-stream encoding
Max 25/30fps@1080P(1920×1080)
Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS

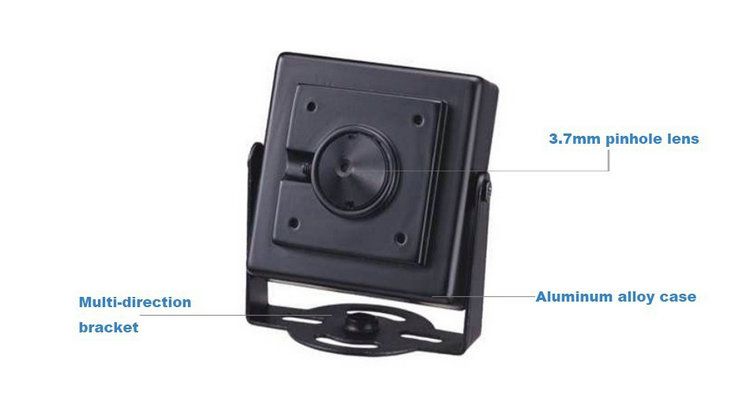

Lens:Pinhole Lens 3.7mm
IP64
Wifi /POE/ Audio optional
Support more than 20 languages Mobile Phone View
Support P2P Function/DDNS Motion Detection
Free CMS,Support ONVIF/RTSP
H.264 & MJPEG dual-stream encoding
Max 25/30fps@1080P(1920×1080)
Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS
Lens:Pinhole Lens 3.7mm
IP64
Wifi /POE/ Audio optional
Support more than 20 languages Mobile Phone View
Support P2P Function/DDNS Motion Detection
Free CMS,Support ONVIF/RTSP
| Model | JYM-4019IPC-2.0MP | |||
| Camera | ||||
| Image Sensor | 2 Mega pixels,1/2.8" SONY CMOS sensor with IR Cut filter | |||
| Effective Pixels | 1920(H)x1080(V) | |||
| Scanning System | Progressive | |||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/10000s | |||
| Min. Illumination | Color: 0. 5Lux, B/W: 0.1Lux ; 0Lux(IR on) | |||
| S/N Ratio | >50dB | |||
| Camera Features | ||||

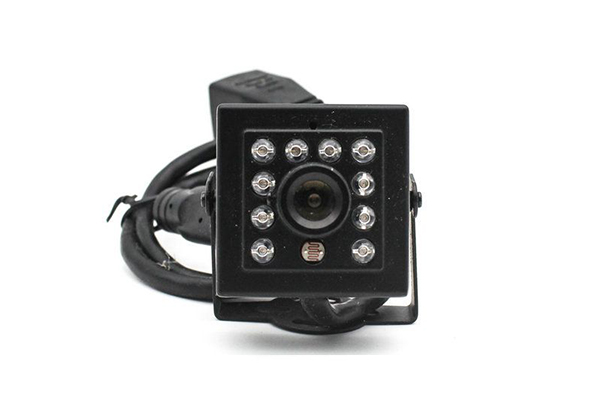

| Max. IR LEDs Length | > 24pcs 940nm hidden IR LED. IR Range15m | |||
| Day/Night | Auto(ICR)/Color/B/W | |||
| Backlight Compensation | BLC | |||
| White Balance | Auto | |||
| Gain Control | Auto/Manual | |||
| Noise Reduction | 3D | |||
| WDR Dynamic Range | DWDR | |||
| Lens | ||||
| Focal Length | Lens:pinhole lens 3.7mm | |||
| Max Aperture | F1.6 | |||
| Angle of View | 80° | |||
| Mount Type | MTV mount(Interchangeable Lens) | |||
| Video | ||||
| Compression | H.264/MJPEG | |||
| Frame Rate | Main Stream | 1080P (1920*1080) 960p (1280*960)/25fps/HD 720P(1280*720) 25fps | ||
| Sub Stream | D1 704*576 25FPS / CIF 25FPS | |||
| Bit Rate | 100kbps-12Mbps, Supports CBR/VBR | |||
| Network | ||||
| Ethernet | RJ-45 (10/100Base-T) | |||
| Protocol | IPV4/IPV6,UDP,RTP,RTSP,RTCP,HTTP,TCP/UDP,DNS,DDNS,DHCP,NTP,PPPOE,SMTP,UPNP,P2P | |||
| ONVIF | ONVIF Ver.2.4 | |||
| Max. User Access | 10 users | |||
| Smart Phone | iPhone,iPad,Android | |||
| General | ||||
| Wifi | Wifi(IEEE802.11b) | |||
| Power Supply | DC12V,PoE | |||
| Power Consumption | <6W | |||
| Working Environment | -10°C~+60°C,10%~90% | |||
| Ingress Protection | IP64 | |||

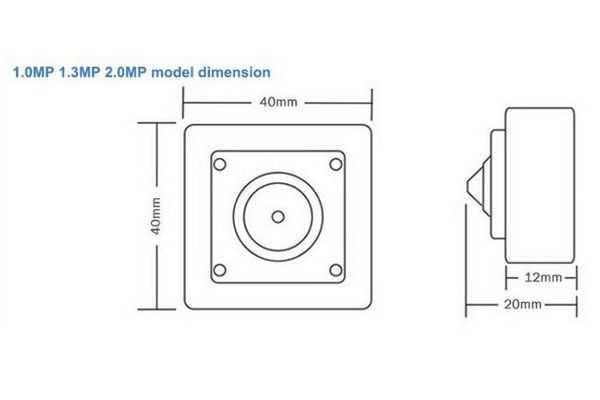

| Size | 40mm*40mm*25mm | |||
| Package Weight | 0.3KG | |||
| Approvals | CE FCC RoHS | |||
