| Model Number | IPC-Kit1080PTZ-8POE-8.0MP/4K |
| Warranty | 2 years |
| Special Features | NIGHT VISION, Waterproof / Weatherproof, Two-way Audio |
| Sensor | CMOS |
| Style | PTZ Dome Camera |
| Function | Two-way Audio, NIGHT VISION, Waterproof / Weatherproof |
| Video Compression Format | H.265 |
| Data Storage Options | NVR |
| Application | Outdoor, Indoor |
| Customized support | Online technical support, Customized logo |
| Camera | |
| Video Standard | H.265/H.264 Double code |
| Video Resolution Main stream | 3840x2160 1-15fps |
| Day/Night | Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto |
| AGC/BLC | Support |
| Lens | 3.6mm, 30m IR |
| DNR | 2D/3D DNR |
| Other | Motion Detection, Privacy Mask, Mirror, Rotate |

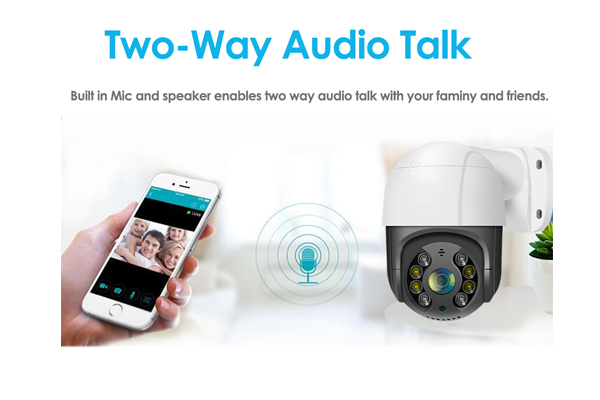

| Audio | Two way audio |
| PTZ | Pan,tilt |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P/UPNP |
| P2P | Yes |
| Web | IE , Firefox, etc. |
| Media | CMS, Android, IOS |
| ONVIF | 2.6 compatible |
| General | |
| Network Port | 1-RJ45, 10/100Mbps |
| Power Supply | Support POE 48V 12 VDC ± 10% |
| Power Consumption | < 15 W |
| Operating Temperature | -30℃-(+70)℃, 10%-90%RH |
| Waterproof level | IP66 |
| NVR | |
| Module | NVR-JA9008-8P/4K |
| OS | Embedded Linux |
| Master chip | MC6630 |
| Access Bandwidth | 64M |
| Support 1 SATA, 8ch POE port (IEEE 802.3af) | Yes |
| Bidirectional Talk | Two-way voice intercom function |
| CVBS Output | 1CH,BNC(1.0Vp-p,75ohms) |
| HDMI | Resolution 1920×1080, 1280×1024,1280×720,1024×768,800×600 |
| Audio Output | 1CH,BNC(Line out,2Vpp,300ohms) |
| IP Resolution | Main stream:up to 5632x4224 Sub stream: no more than D1 |
| Synchronous Playback | Up to 8CH |
| Bidirectional Talk | Two-way voice intercom function |
| Motion Detection | Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest) |
| Network Interface | 1 RJ45 10M/100M/1000M adaptive Ethernet interface |
| POE inputs | 8ch POE inputs |
| Weight | 3.0 Kg(without HDD) |
| Power Supply | 110V~220V±10% ±10% 47Hz~63Hz |
| Working Temperature | -10℃--+55℃ |
| Working Humidity | 10%--90% |
| Consumption | 30W(without HDD) |
