1.5MP Full HD,H.265 Video Compression;
2.Power Over Ethernet,POE NVR System with POE IP Camera;
3.Motion detection With White Lights on for night color vision,IP66 Weatherproof Outdoor;
4.All Cameras are built-in Microphone and Speaker, Support Two-way Audio Sound Recording;

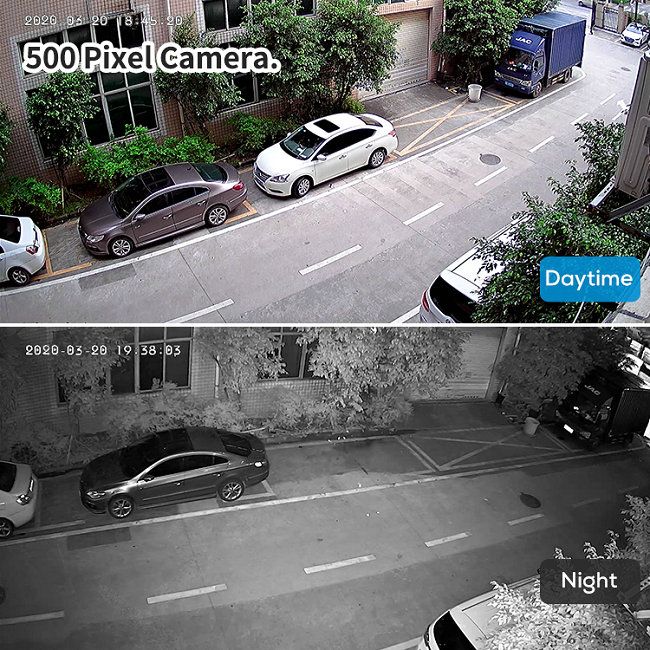

5.Full Color Ultra HD Day & Night Vision,Video With Smart Playback;
6.Remote View Anywhere Anytime,POE Set,Plug and Play,Easy Setup;

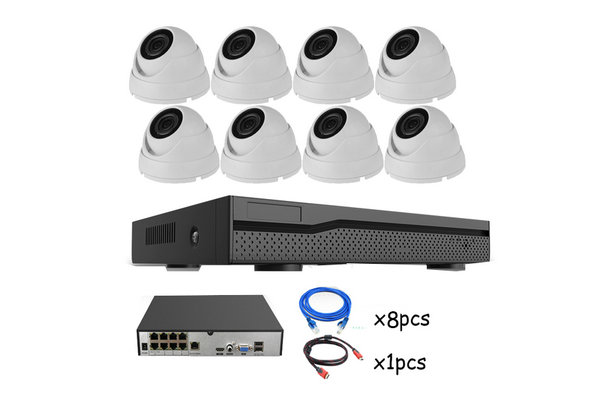

Packing List

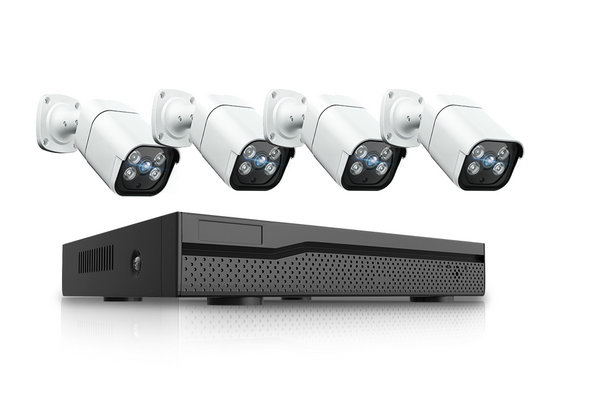

1 X H.265 8CH 5.0MP POE NVR Network Video Recorder;
8 x H.265 HD POE 5.0MP IP indoor outdoor IR Day Night vision Bullet weatherproof cameras;
1 x Power Supply for NVR;
8 x Power Supply for cameras;
1 X USB Mouse for NVR;
1 X Software CD for NVR;
1 X Remote Control for NVR;
Hard Disk Optional!!!

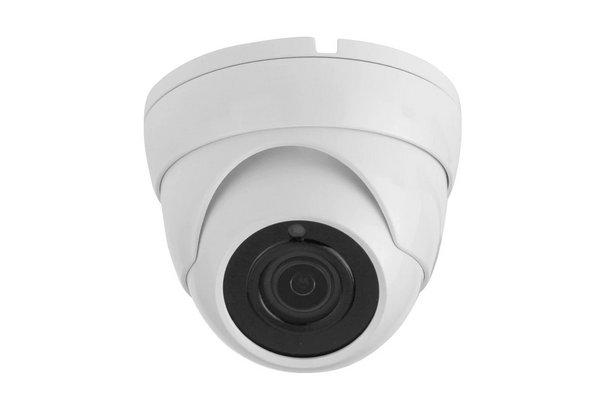

Camera | |
Model | IPC-Kit6096-POE-5.0MP |
Video Standard | H.265/H.264 Double code |
Video Resolution | Main stream: 2592x1944 1-20fps |
Image Quality | Brightness setting, Saturation setting, Sharpness setting, Contrast setting, Auto white balance, Manual white balance setting, Backlight compensation setting, Light suppression setting, Auto exposure, 2D/3D noise reduction intensity setting, Fog mode setting, WDR mode Strength setting |
Day/Night | |
WDR | Digital WDR |
White Balance | Auto |
AGC/BLC | Support |
DNR | 2D/3D DNR |
Other | Motion Detection, Privacy Mask, Mirror, Rotate |
Audio | Optional |
Lens | 3.6mm, 30m IR |
Network Services | |
Protocol | HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P/UPNP |
P2P | Yes |
Web | IE , Firefox, etc. |
Media | CMS, Android, IOS |
ONVIF | 2.6 compatible |
General | |
Network Port | 1-RJ45, 10/100Mbps |
Power Supply | Support POE 48V 12 VDC ± 10% |
Power Consumption | < 15 W |
Operating Temp. | -30℃-(+70)℃, 10%-90%RH |
Waterproof level | IP66 |
NVR | |
Module | NVR-JA8008-8P |
OS | Embedded Linux |
Master chip | Hi3536D |
Access Bandwidth | 64M |
Support 1 SATA, 8ch POE port (IEEE 802.3af) | Yes |
Bidirectional Talk | Two-way voice intercom function |
CVBS Output | 1CH,BNC(1.0Vp-p,75ohms) |

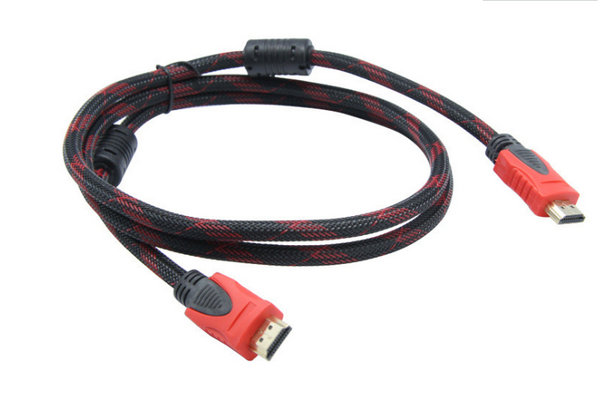

HDMI | Resolution 1920×1080, 1280×1024,1280×720,1024×768,800×600 |
Audio Output | 1CH,BNC(Line out,2Vpp,300ohms) |
IP Resolution | Main stream:up to 5632x4224 Sub stream: no more than D1 |
Synchronous Playback | Up to 8CH |
Bidirectional Talk | Two-way voice intercom function |
Motion Detection | Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest) |
Network Interface | 1 RJ45 10M/100M/1000M adaptive Ethernet interface |
Weight | 3.0 Kg(without HDD) |
Power Supply | 110V~220V±10% ±10% 47Hz~63Hz |
Working Temperature | -10℃--+55℃ |
Working Humidity | 10%--90% |
Consumption | 30W(without HDD) |
