55" 4K HD Monitor
1. Access resolution: 3840×2160 (4K), 2560×1440 (2K), 1920×1080 and below;
2. Screen ratio: 16:9; Viewable area: 1212.7×682.5mm; Brightness: 400cd/m²;
3. Contrast ratio: 3000:1; viewing angle: full viewing angle; response time: 5ms;
4. Screen interface: V-by-one, best resolution: 3840×2160;
5. Interface: 2*HDMI, 1*USB; standard configuration: speaker, HDMI cable, remote control

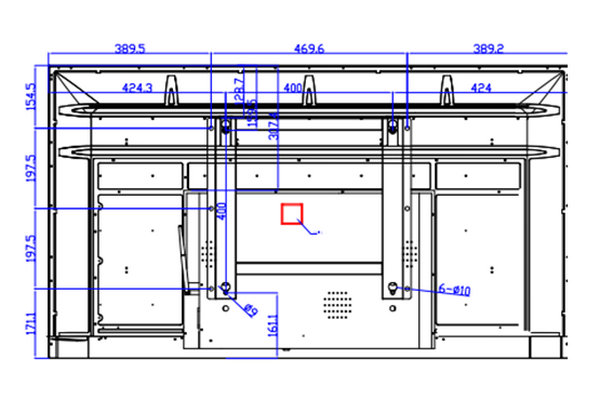

6. Support wall hanging and hoisting (already equipped with wall hanging bracket, hole distance: 400×400mm)
| Product Type | Professional Monitor |
| Product model | JY-F5500-E |
| Screen size | 55inch |
| Display Mode | 16:9 |
| Visible area | 1212.7mm(H)*682.5mm(V) |
| Panel Type | TFT LED |
| Best resolution | 3840*2160 |
| Display color | 1.07B |
| Dot pitch | 0.55926(H)*0.55926(V) |
| Brightness | 500cd/㎡ |
| Contrast ratio | 3500:1 |
| Viewing angle (horizontal/vertical) | 178°/178° |
| Response time | 5ms |
| Field frequency | 50~75Hz |
| Lamp life | >50000 hours |
| Composite video input | 3-way BNC (BNC*3), can be connected to video equipment |
| D-sub PC input | 1 D-sub VGA |
| USB input | 2 channels |
| HDMI input | 1 HDMI |
| DP input | 1 channel |
| Color system | PAL/NTSC |
| Compatible HD/SD and HDMI inputs | 400i/P, 576i/P, 720P, 1080i/1080P, 4K |
| 3D deinterlacing decoding | support |
| 3D comb filtering | support |
| MPEG noise reduction | support |
| Picture-in-picture, Picture-outside-picture | support |
| Menu language | Chinese/English |
| Power input | AC 100~240V, 50/60Hz |
| Normal power consumption | 250W |
| Standby power consumption | <1W |
| Cooling system | ultra-quiet temperature-controlled fan cooling |

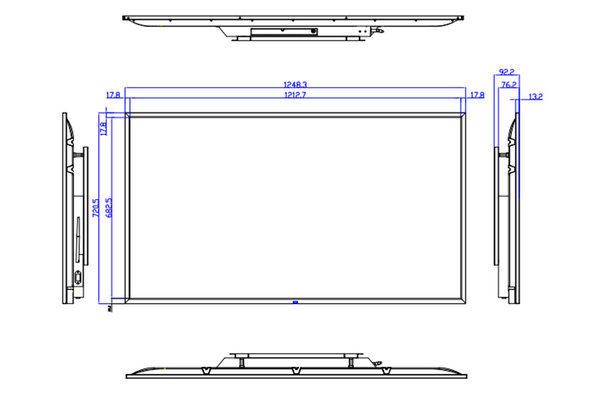

| Body size | 1248.3mm*720.5mm*92.2mm (for reference only) |
| Net weight | 30.64KG (excluding hangers) |
| Installation method | cabinet/wall mount |
| Accessories | wall bracket, international power cord, remote control, manual, warranty card, certificate |
