IP bullet PTZ camera IPC-1090PTZ IE Video

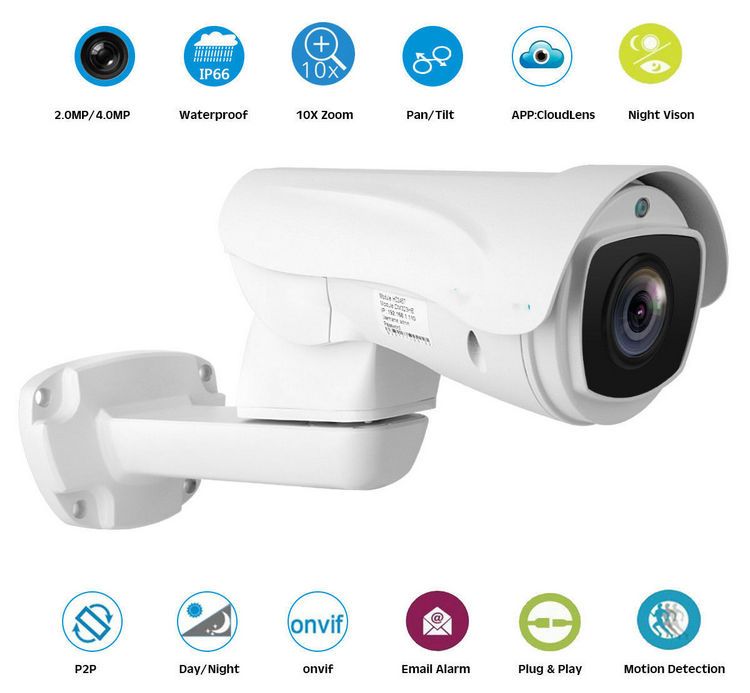

![IP bullet PTZ camera IPC-1090PTZ function](/d/file/2018-12-10/a5a0a07dd34aed00ad376cdd152b70d0.jpg)
![IP bullet PTZ camera IPC-1090PTZ PTZ](/d/file/2018-12-10/612db325b1fc474d955a59c707b5b698.jpg)
![IP bullet PTZ camera IPC-1090PTZ IP66](/d/file/2018-12-10/b674c012c2921f037a55e3775961111c.jpg)

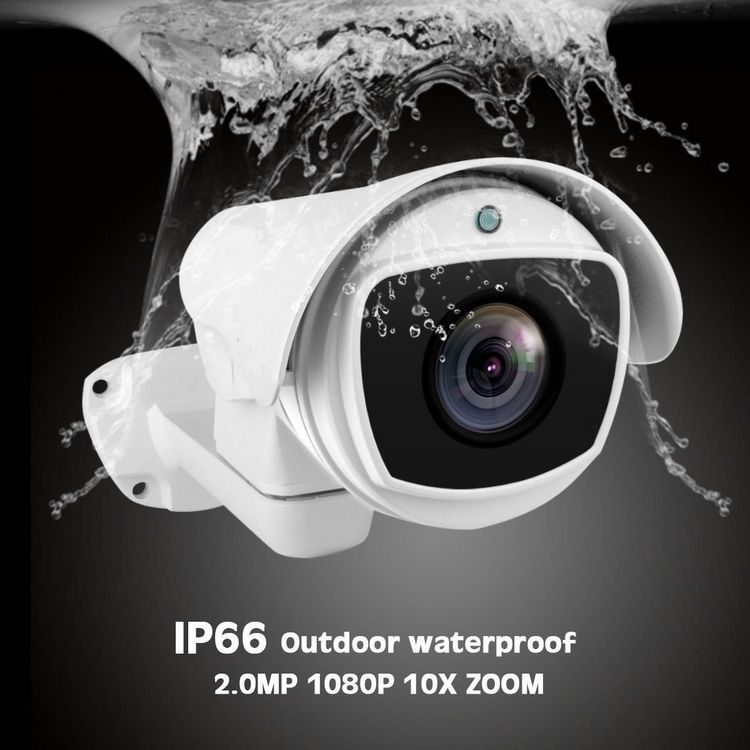

* Total Metal housing, IP66
* A-B scan, tour available
* Support audio ( optional)
* Support external POE(optional)
* ONVIF GB/T28181;Support P2P function
* Support H.264/MJPEG compression,triple stream, video output
* Compatible with HIKVISION/DAHUA/Milestone/AEVISION/UC2 and AXXON platform
* A-B scan, tour available
* Support audio ( optional)
* Support external POE(optional)
* ONVIF GB/T28181;Support P2P function
* Support H.264/MJPEG compression,triple stream, video output
* Compatible with HIKVISION/DAHUA/Milestone/AEVISION/UC2 and AXXON platform
Camera | IPC-1090PTZ-1.3M/5X | IPC-1090PTZ-2.0M/5X | IPC-1090PTZ-1.3M/10X | IPC-1090PTZ-2.0M/10X | |
Sensor | 1/3" CMOS 2MP Sony323 | 1/3" CMOS 4MP OV4689 | 1/3" CMOS 2MP Sony323 | 1/3" CMOS 4MP OV4689 | |
Output pixel | 1920x1080/30fps 1920x1080/25fps |
2592x1520/30fps 2592x1520/25fps | 1920x1080/30fps 1920x1080/25fps |
2592x1520/30fps 2592x1520/25fps |
|
Lens | 5X f=2.7-13.5mm | 2.8 / 4 / 6 / 8 /12MM | 10X f=5.1mm~51mm | 10X f=5.1mm~51mm | |
BLC | Support | ||||
AGC | Auto/manual | ||||
WB | Auto/manual/indoor/outdoor | ||||
S/N Ratio | >50dB | ||||
Dome | |||||
Communications Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P | ||||
Software Control | IE, CMS, Management Platform | ||||
Video compression | H.264/H.265/M-JPEG | ||||
audio compression | G711,PCM | ||||
Mobile View(optional) | Android iPhone | ||||

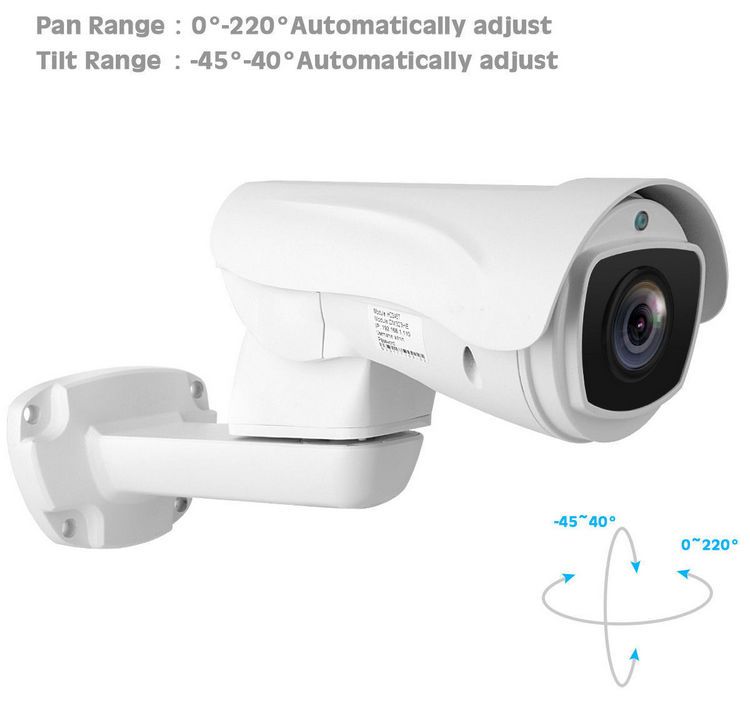

Rotation Range | Pan:0º~220º , Tilt:-45º~40º | ||||
Rotation Speed | Pan:0~30°/s, Tilt:0~25º/s | ||||
Preset Points | 220pcs presets(dwell time 01-60s interval available) | ||||
Guard Tours | 3 groups( Max.16 points, dwell time user selectable) | ||||
AB scan range | Any point in range:-45º~40º and 0º~200º | ||||
AB scan speed | 1-9 grades | ||||
Operating temperature | Outdoor: -40℃~+60℃ | ||||
Operation menu | English | ||||
Consumption | ≤15W | ||||
Lightning Protection | Transient voltage 6000V | ||||
Related validation | IP66,CE,FCC,RoHs | ||||
IR parameters | |||||
Auto Control IR LED | PWM | ||||
IR distance | Up to 100 meters | ||||
LEDs | 6 PCS Array 42Mil IR LED | 4 PCS Array 42Mil IR+2 PCS Laser LED | |||
Support ambient light detection | IR illumination on 1-9 grades selectable |
