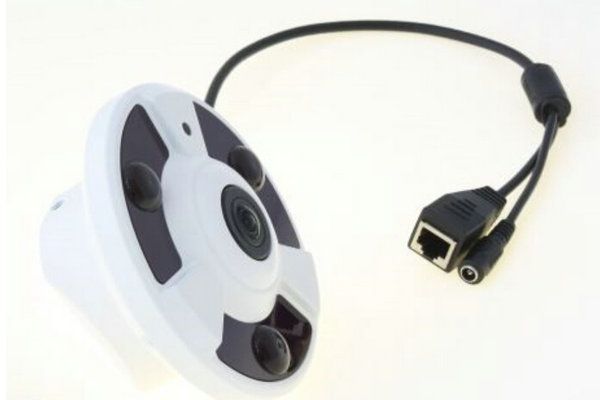

IPC-360HDB3200CR IP Camera Panoramic view

 Tip: Click on the image to enlarge
IPC-360HDB3200CR
IPC-360HDB3200CR
IPC-360HDB3200CR
IPC-360HDB3200CR
　　Features:
　　> 360 degree fisheye lens IP dome camera
　　>1/2.5 inch 2.0 Megapixel Sony CMOS Sensor.
　　>1.2mm 360° panoramic lens ,Image without warping
　　> Support P2P Function/DDN Motion Detection ONVIF/RTSP
　　> H.264 & MJPEG dual-stream encoding
　　> Max 2.0MP(1920*1080@30/25fps)
　　> Day/Night(ICR), 3DNR, AWB, AGC, BLC
　　> Multiple network monitoring: Web viewer, CMS
　　> DC12V  IP66
　　>POE optional
Model IPC-360HDB3200CR
Camera
Image Sensor 1/2.5 inch 2.0 Megapixel Sony CMOS Sensor.;HI3516C+ IMX 322
Effective Pixels 1920(H)x1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s
Min. Illumination Color: 0. 5Lux, B/W: 0.1Lux ; 0Lux(IR on)
S/N Ratio >50dB
Camera Features
Max. IR LEDs Length N/A
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 3D
WDR Dynamic Range DWDR
Lens
Focal Length 1.2mm
Max Aperture F1.6
Angle of View 360° panoramic lens
Mount Type MTV mount (Interchangeable Lens)
Video
Compression H.264 / MJPEG
Frame Rate Main Stream 1.0MP(1280*720@30/25fps;1.3MP(1280*960@30/25fps); 2.0MP(1920*1080@30/25fps);
Sub Stream D1 704*576 25FPS / CIF 25FPS
Bit Rate 100kbps-12Mbps, Supports CBR/VBR
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPV4/IPV6 , UDP , RTP , RTSP , RTCP , HTTP , TCP/UDP, DNS , DDNS , DHCP , NTP , PPPOE , SMTP , UPNP, P2P
ONVIF ONVIF Ver. 2.4
Max. User Access 10 users
Smart Phone iPhone, iPad, Android
General
Power Supply DC12V, PoE 802.3af (optional)
Power Consumption <6W
Working Environment -10°C~+60°C, 10%~90%
Approvals CE FCC RoHS
