Products Introduction:
Easy installation by yourself with the adapter and cable we provided in this kit,outdoor unit can connect to indoor monitor by wired 4P cable.When indoor monitor connected to your wireless wifi router,you can connect mobile phone to indoor monitor,then mobile phone also can record video or open the door etc.Widely used in villas, apartments, houses, hotels, offices, public buildings and so on.
1.Indoor monitor use the multi-point capacitance touch screen,adopt to Android System,steady and easy to operate.
2.7 inch High definition digital LCD monitor,with take picture,visitor records and calendar function.
3.Indoor monitor can take picture by manually or automatically,max to support 64G TF card.
4.Indoor monitor with monitor,intercom,unlock,hands-free and Don't disturb function.
5.Volume, brightness & colorful adjustable.
6.The indoor monitor can support to connect 8 mobile phone APP user,Support IOS/Android system mobile phone , then the mobile phone can view and unlock.
7.Indoor monitor can connect to wireless wifi router.
8.Mobile APP with monitor,intercom, take picture,video record by manually and unlock functions.
9.Display:7" TFT LCD(16:9)
10.Resolution: 1024(H)X600(V)

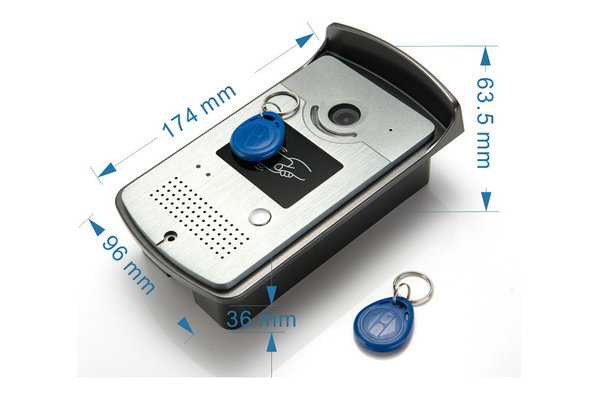

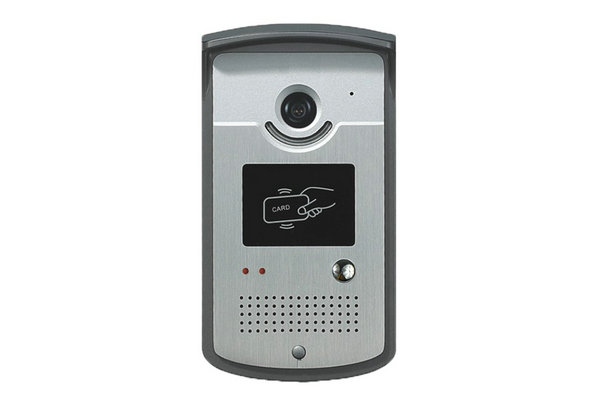

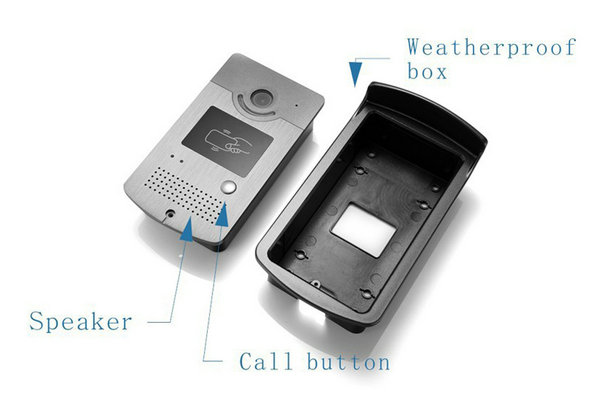

door machine

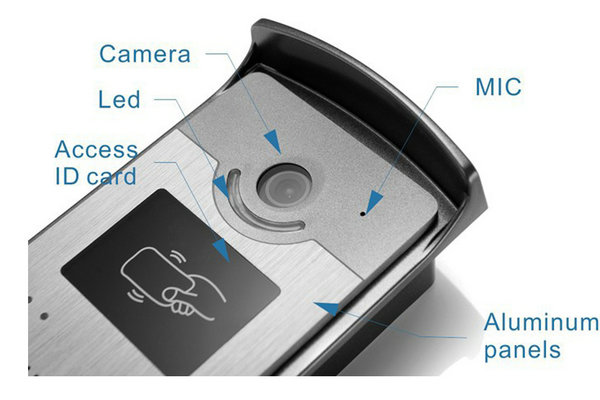

1.Infrared night vision function.
2,1000 line hd camera.
3.Material: zinc alloy
4. can be turned on and powered off to open the lock.
5. Four-core connector.
Performance parameters:
1. Switch power: AC: 100-240v --50Hz/60HZ, dc15v1.2a
2. Overall machine current: less than 800mA
3. Call delay time: 120S + 10%
4. Monitoring delay time: 60S + 10%
5. Camera sensor: 700 lines
6. Lens: 3.6MM92 degrees

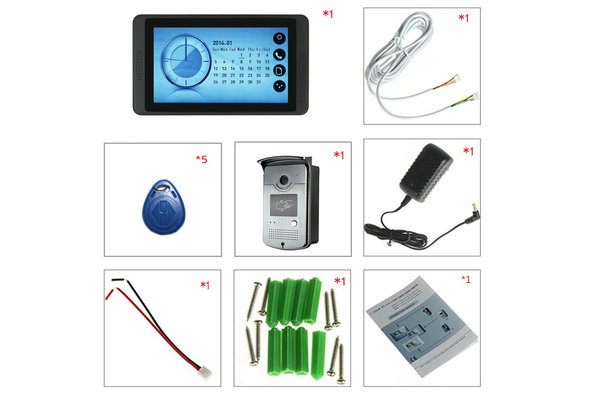

Package includes:
1 * Outdoor camera
1 * Indoor monitor
1 * AC adapter
1 * 5m 4-core Connection cable
1 * 2-core Connection cable
1 * Package of screws
1 * User manual-English
5 * ID card
