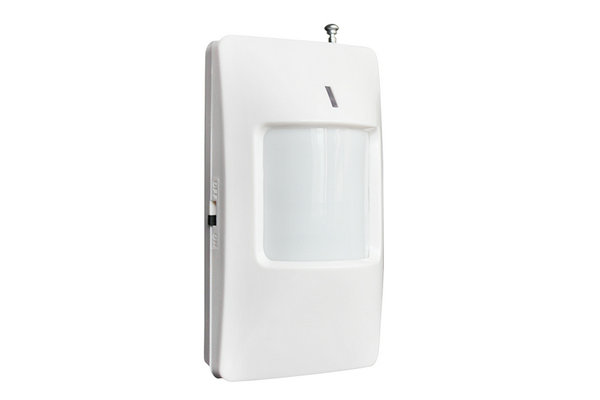

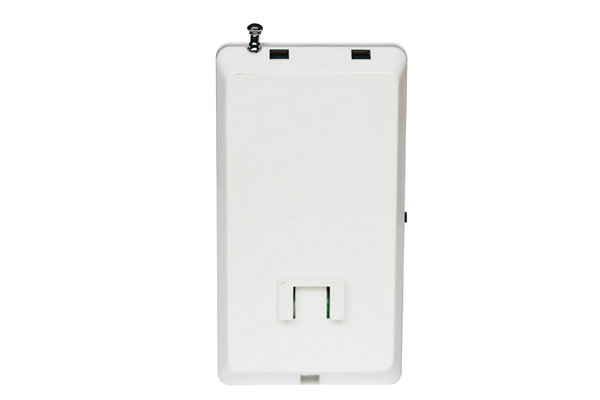

AWL-802W Wireless PIR detector

 Tip: Click on the image to enlarge

  1.Wireless emitting distance: open area: 150m

  2.Emitting frequency: 315MHz / 433MHz;

  3.Programme code: 1527 / 2264

  4.Detecting range: 12m(PIR)/8M(Curtain); detecting angle: 110°

  5.the flame-retardant ABS housing, with the detector bracket.

  6.digital circuits, adopt to microprocessors;

  7.two-way digital temperature compensation, super anti-false alarm;

  8.the SMT process manufacturing, resistance to the RFI, EMI interference;

  9.the pulse count can be adjusted, the detection sensitivity is adjustable;
