Feature:
It’s a real 3G/4G network camera, supports the 4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE.
The Camera resolution Max 4.0MP. 2.0MP/1.3MP option .
It supports maximum 32GB--128GB internal TF card storage. It supports 24-hours video recording,
scheduled video recording,manual video recording, alarm video recording, video record searching, video record preview and video record download. The video record is stored as the standard AVI file.The system supports the 3G/4G hotspot function. The 3G/4G bandwidth can be shared by other WiFi devices when the WiFi AP mode is enabled.
When you can’t run network wire to the IP camera, you can use a 3G/4G wireless camera system.
Such as temporary construction site,farm,vehicle any place have 3G/4G covered is available .
Support Network:
4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE
Support Band:
B1/B3/B7/B20/B38/B39/B40/B41/B26
Support Band of frequencies:
FDD LTE Band7 / Band3/BAND1/BAND8
TD-LTE Band38 (2570-2620MHz) / Band39 (1880-1920MHz) / Band40 (2300-2400MHz） Band41 (2496-2690MHz）
WCDMA/1900/2100/2600MHz
TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz)
EDGE/GPRS/850/900/1800/1900MHz
UMTS Band1 / Band2 / Band5 GSM 900 / 1800 / 1900 MHz
Network Speed
FDD-LTE/TD-LTE(4G):150MBPS/50MBPS
WCDMA(3G):21MBPS/5.76MBPS
TD-SCDMA(3G):2.8MBPS/2.2MBPS
It’s a real 3G/4G network camera, supports the 4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE.
The Camera resolution Max 4.0MP. 2.0MP/1.3MP option .
It supports maximum 32GB--128GB internal TF card storage. It supports 24-hours video recording,
scheduled video recording,manual video recording, alarm video recording, video record searching, video record preview and video record download. The video record is stored as the standard AVI file.The system supports the 3G/4G hotspot function. The 3G/4G bandwidth can be shared by other WiFi devices when the WiFi AP mode is enabled.
When you can’t run network wire to the IP camera, you can use a 3G/4G wireless camera system.
Such as temporary construction site,farm,vehicle any place have 3G/4G covered is available .
Support Network:
4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE
Support Band:
B1/B3/B7/B20/B38/B39/B40/B41/B26
Support Band of frequencies:
FDD LTE Band7 / Band3/BAND1/BAND8
TD-LTE Band38 (2570-2620MHz) / Band39 (1880-1920MHz) / Band40 (2300-2400MHz） Band41 (2496-2690MHz）
WCDMA/1900/2100/2600MHz
TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz)
EDGE/GPRS/850/900/1800/1900MHz
UMTS Band1 / Band2 / Band5 GSM 900 / 1800 / 1900 MHz
Network Speed
FDD-LTE/TD-LTE(4G):150MBPS/50MBPS
WCDMA(3G):21MBPS/5.76MBPS
TD-SCDMA(3G):2.8MBPS/2.2MBPS

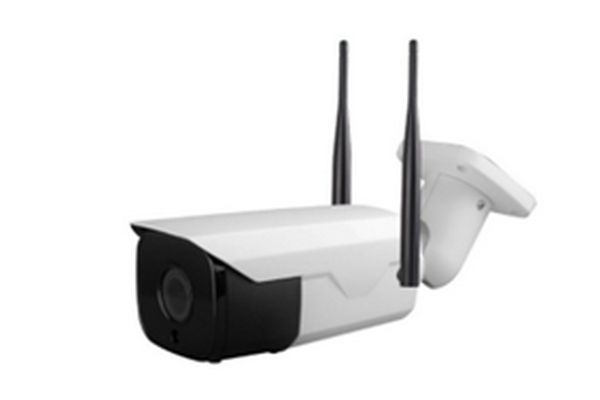

| Model No. | JY-IPH590-4G | |
| 4G | Support Network | 4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE |
| Support Band | B1/B3/B7/B20/B38/B39/B40/B41/B26 | |
| Support Band of frequencies | FDD LTE Band7 / Band3/BAND1/BAND8 | |
| TD-LTE Band38 (2570-2620MHz) / Band39 (1880-1920MHz) / Band40 (2300-2400MHz） Band41 (2496-2690MHz） | ||
| WCDMA/1900/2100/2600MHz | ||
| TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz) | ||
|
EDGE/GPRS/850/900/1800/1900MHz
|
||
| UMTS Band1 / Band2 / Band5 GSM 900 / 1800 / 1900 MHz | ||
| Network Speed | FDD-LTE/TD-LTE (4G) :150MBPS/50MBPS | |
| WCDMA (3G): 21MBPS/5.76MBPS | ||
| TD-SCDMA (3G): 2.8MBPS/2.2MBPS | ||
| Video | Resolution | 2.0MP 1920*1080P@30/25/fps |
| Video streaming | HD(1920*1080P),VGA(640*360),QVGA(320*180) | |
| Compression standard | H.264 | |
| IR-Cut | Built-in IR Cut.No color deviation indoor and outdoor | |
| Lens Mount | Varifocal Lens 2.8-12mm | |
| Image Frame Rate | 30fps maxmium,downward adjustable | |
| Night Vision | 4Pcs Array IR LEDs,IR distance up to 40 meters | |
| Waterproof | Product Type | Metal Gun type/Waterproof outdoor use |
| Waterproof | IP66 | |
| Network | Ethernet | RJ-45 Ethernet |
| Wireless | IEEE 802.11 b/g/n,Security supports WEP,WPA&WPA2 Encryption | |
| Onvif Protocol | Supports NVR real time monitoring,recording and playback | |
| Alarm | Motion Detection | Yes |
| Alarm Setting | Supports Email,Phone push | |
| Alarm recording | Yes | |
| Storage | MicroSD Card | Supports up to 128G microSD card for recording and playback |
| Recording mode | Manual Record,Alarm Record,Timing Record | |
| View the video | Support Remote video playback | |
| System | For Phone | Support IOS and Android system smart phones or tablet PCs |
| For Windows PC | CMS suports1-,4-,6-,8-,9,16-Channel IP Camera centralized monitor,record and playback on Windows PC | |
| Weight | Package weight | 1000g |
| Accessories | Adaptor,User Manual,Bracket,Screw | |
