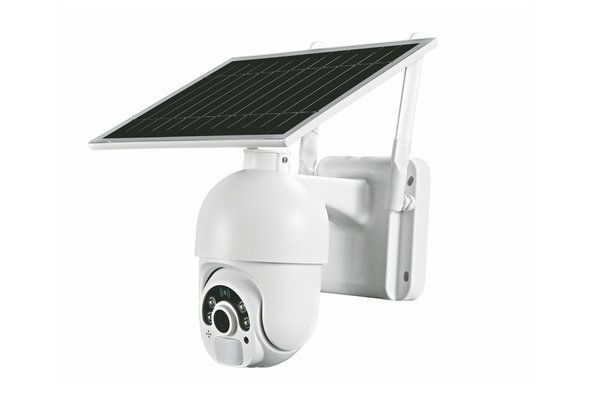

S20-4G UBox mini solar ptz camera

 Tip: Click on the image to enlarge


S20-4G UBox mini solar ptz camera

Main feature • Solar panel universal adjustment, built-in super capacity battery
• Ultra-low power standby, quick wake up in 0.2 seconds
• PIR sensor + radar dual alarm detection
• High-performance ISP and 1/2.7" progressive sensor, blacklight full color
• 1920*1080P HD video
• Built-in microphone and loudspeaker,support two way audio
• Support Cloud storage and local storage
• APP support Android/IOS
• IP65 waterproof

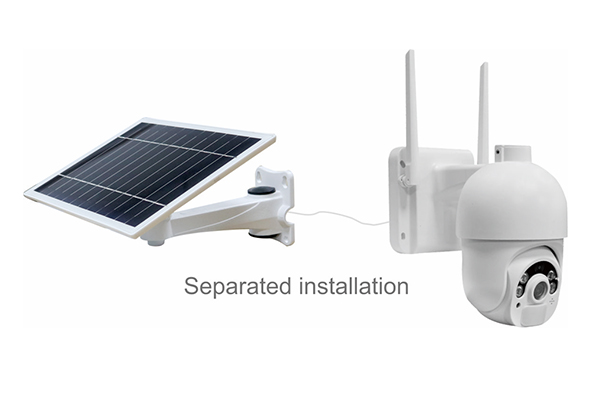

• Support All-in-One installation and separated installation
Product Name Solar Power Alert PTZ Camera-4G
Model No. S20-4G
General Main processor Ingenic-T31ZL
APP Operation System Android, IOS
Image Senor 1/2.7″ Image Sensor
Compression H.264+/H.265
Resolution 1920*1080 1080P
Internet Connection 4G  TD-LTE,TD-LTE / LTE FDD TD-LTE / LTE-FDD
4G Version CN/ AU/ EU/ JP/ US/ ASEAN (Optional)
Alarm Detection Mode PIR + Radar dual detection
Detection Distance 0~12M
Detect Angle 95°
Alarm Mode Realtime calling or push message
PTZ PTZ Angle Horizontal 355 ° Vertica 100°
Speed Horizontal 55 °/S Vertical 40°/S
Night Vision Full color night vision 0.001 Lux
IR LED infrared LED 30M IR distance
White light LED white light LED 30M distance
 Audio Built-in speaker (input) 3W
Built-in microphone (output) voice monitoring distance 20M
Lens Lens 3.6mm
Lens Angle 95°
Storage Cloud Storage storage when alarm recording
Local Storage TF Card Max 128G
Power  Power Supply Mode Solar Panel+ Build in Batteries
Panel Material monocrystalline silicon
Solar Energy Power 6W
Battery Capacity Build in 3pcs 21700 battery 14400MAH
Operating power consumption Max 4W
Standby consumption 0.003W
Others Working Environment Indoor/outdoor
Operation Temperature -30°~+60°
Humidity 0%~90%RH
Package N.W. 1.7KG/PCS

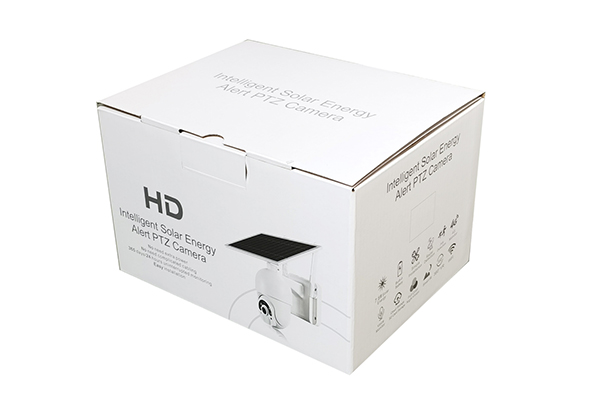

Giftbox size 242*183*150MM
Quantity in carton 9pcs
G.W. 16kg
Carton size 57*25.8*47.2cm
