JY-IPH6655PTZ
1)Mini bullet ptz camera ,3.6mm fixed lens.
2)3G/4G SIM Card Slot
3)Strong double antenna 5db
4)SD Card Slot for local storage
5)10pcs IR LED(20m IR distance)
6)Plug-Play easy Setting (APP: CAMHI)
7)Two way audio with microphone
8)Auto tracking function

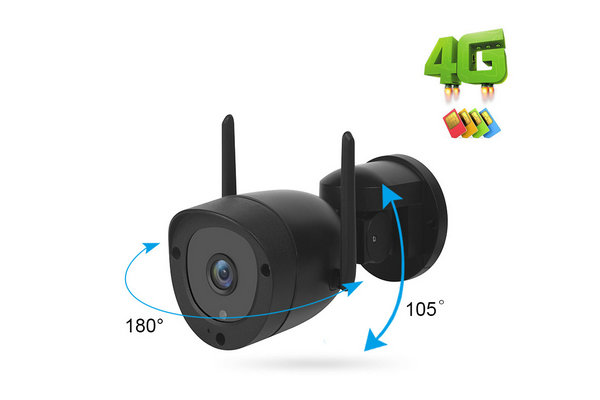

9)Pan & Tilt rotation
10)Support desktop PC software.
| Model No. | JY-IPH6655PTZ-4G | |
| Camera Type | 4G Mini PTZ IP Camera | |
| 4G | Support Network | 4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE |
| Support Band | B1/B3/B7/B20/B38/B39/B40/B41/B26 | |
| Support Band of frequencies | FDD LTE Band7 / Band3/BAND1/BAND8 | |
| TD-LTE Band38 (2570-2620MHz) / Band39 (1880-1920MHz) / Band40 (2300-2400MHz） Band41 (2496-2690MHz） | ||
| WCDMA/1900/2100/2600MHz | ||
| TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz) | ||
| EDGE/GPRS/850/900/1800/1900MHz | ||
| UMTS Band1 / Band2 / Band5 GSM 900 / 1800 / 1900 MHz | ||
| Network Speed | FDD-LTE/TD-LTE (4G) :150MBPS/50MBPS | |
| WCDMA (3G): 21MBPS/5.76MBPS | ||
| TD-SCDMA (3G): 2.8MBPS/2.2MBPS | ||
| Camera | Image Sensor | 1/2..9" Sony IMX323 CMOS |
| Minimum IIIumination | Color:0.05Lux,B/w:0.01Lux,0 Lux with IR | |
| 3D NDR | Support | |
| Electronic Shutter | 1/1~1/30000,AUTO | |
| DayNightMode | AUTO ICR Color to B/W | |
| Focus | 4mm fixed lens | |
| Resolution | 5.0MP 5.0MP 2560*1920PP | |
| Main Stream | 20fps( 2560*1920) ,25fps:(1920*1080）/（1280*960）/（1280*720）/（800*600）/（704*576） | |
| Sub Stream | 25fps:(704×576）/（640×480）/(648×360) | |
| Video Compression | H.265,H.264、H.264_BASELINE H.264_Main profile | |
| Network protocol | HTTP,FTP,SMTP,UPnP,SNMP,DDNS,NTP,RTSP,RTP,TCP,DHCP,PPPoE | |
| PTZ | IR Distance | 30m |
| Horizontal scan | 0°~180°continuously | |
| Vertical range | 0-105°continuously | |
| Horizontal speed | 0.05°~30°/s | |
| Vertical speed | 0.05°~30°/s | |
| General | Power | DC 12V/2A |
| Consumption | ＜6W temp-20~60°C,humidity＜90% | |
| Working environment | ||
| Protection | IP66, 4000V anti surge and lightning | |
| GW | 600G(camera) | |
