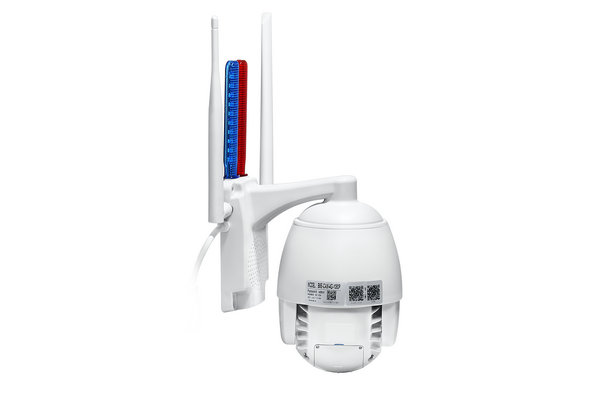

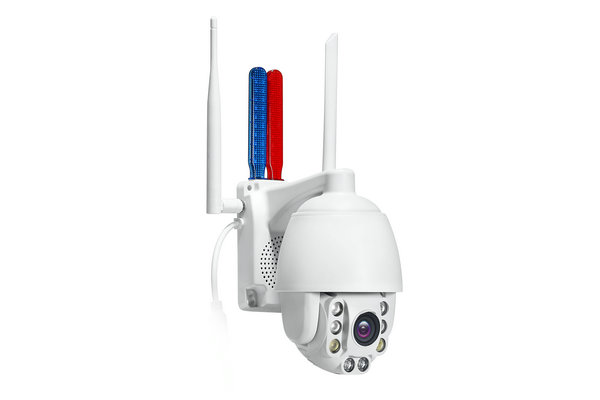

2.5 inch PTZ camera .
1)Autofocus 2.7-13.5mm Lens
2)P/T/Z (5X Optical Zoom)
3)3G/4G SIM Card Slot
4)Strong double antenna 5db

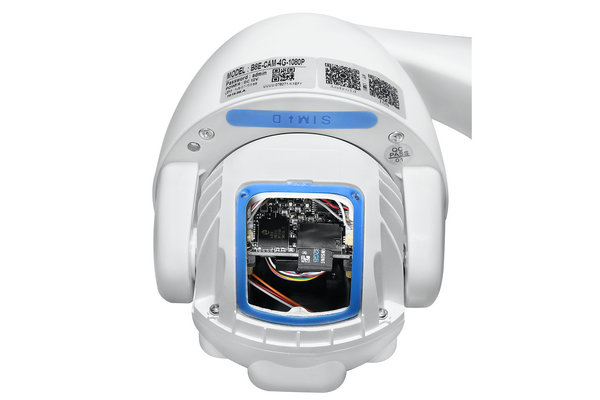

5)SD Card Slot for local storage
6)2pcs White Leds+6pcs infrared Leds(40m IR distance)
7)Plug-Play easy Setting (APP: CamHI)
8)Support 2 way audio and with microphone.
| Model No. | IPH9420-4G/5X | IPH9425-4G/5X | |
| Image Sensor | 1/2.8" Sony CMOS Sensor | 1/2.8" Sony CMOS Sensor | |
| Pixel | 1920*1080P@30/25/fps | 2560*1920P@15fps | |
| Lens | Autofocus 2.7-13.5mm Lens | ||
| 3G/4G | 3G/4G network standard | 4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE | |
| Bands | B1/B3/B7/B20/B38/B39/B40/B41/B26 | ||
| Transmission Speed | LTE FDD/TDD (Cat.4) download 150 Mbps. Upload 50 Mbps | ||
| 3G HSPA+ download 21 Mbps，Upload 5.76 Mbps | |||
| 3G TD-SCDMA download 2.8 Mbps，Upload 2.2 Mbps | |||
| 3G/4G Video Transmission channel | LTE B1/B3/B8/B38/B39/B40/B41 (CA not support) | ||
| TD-SCDMA B34/B39 | |||
| WCDMA 2100/900MHz | |||
| GSM/GPRS/EDGE 900/1800MHz | |||
| Signal Strength Detection | Support | ||
| SMS | Support SMS sending | ||
| SIM card slot | Support. Standard USIM card. | ||
| SIM card lock | Support | ||
| Alarm | SMS Alarm | Support | |
| 3G Video Call Alarm | Support | ||
| Motion Detection Alarm | Support. 3 sensitivity levels: low, standard, high | ||
| Alarm Platform | Support iPhone push alarm | ||
| Alarm Video Recording | Support | ||
| Alarm recording | Support.The video will be recorded 5 seconds before the alarm triggered time. | ||
| Alarm Zone | Alarm Zone | ||
| Alarm Level | Alarm Level | ||
| Record | Record File Format | AVI file format | |
| Record Storage | Internal TF Storage. FAT file system. Maximum 32GB | ||
| Recording mechanism | The least recently used file will be deleted when the available storage is less than 10%. | ||
| Manual recording | Support. User can start and stop the recording using the client application | ||
| Record searching | Support. Search by record time and type. | ||
| Record management | Support User can download, batch delete and one-click delete the record. | ||
| 24 hours recording or scheduled recording | Support. Scheduled by week day and time. Each record can be 10, 15, 30, 60 minutes long. | ||
| Online Record Watching | Support. User can watch the whole video or preview the key frame of the video. | ||
| Auto | Auto Exposure | Support | |
| Auto White Balance | Support | ||
| Electronic shutter | Auto Exposure | ||
| Wi-Fi | Wi-Fi | WiFi 802.11g/n | |
| WiFi Mode | AP mode. (OPTION STA Mode +5$,Switching comes into effect in 5 seconds ) | ||
| General | Day and night function | Yes | |
| Clock | RTC real time clock. Support NTP and remote setting. | ||
| Voltage | 12V DC | ||
| Power | Maximum power consumption12W minimum power consumption 5W | ||
| Working Environment | Working Temperature -10℃~+50℃,Working humidity 10%~90% | ||
