JY-4GR01 4G wireless router

 Tip: Click on the image to enlarge

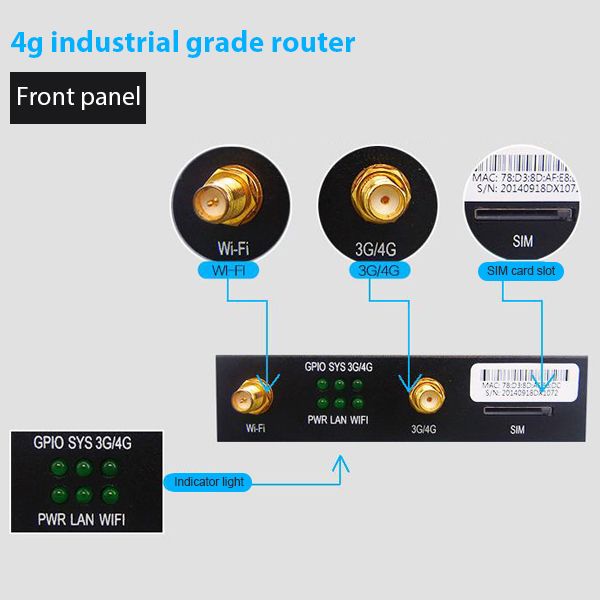

4G wireless router JY-4GR Part function

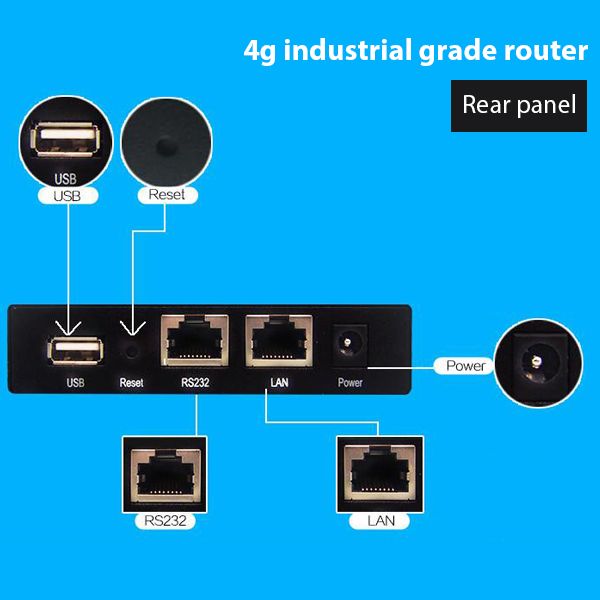

4G wireless router JY-4GR interface
4G wireless router JY-4GR Manual

Model No. JY-4GR01
4G Support Network 4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE
Support Band B1/B3/B7/B20/B38/B39/B40/B41/B26
Support Band of frequencies FDD LTE Band7 / Band3/BAND1/BAND8
TD-LTE Band38 (2570-2620MHz) / Band39 (1880-1920MHz) / Band40 (2300-2400MHz) Band41 (2496-2690MHz)
WCDMA/1900/2100/2600MHz
TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz)
EDGE/GPRS/850/900/1800/1900MHz
UMTS Band1 / Band2 / Band5 GSM 900 / 1800 / 1900 MHz
Network Speed FDD-LTE/TD-LTE (4G) :150MBPS/50MBPS
WCDMA (3G): 21MBPS/5.76MBPS
TD-SCDMA (3G): 2.8MBPS/2.2MBPS
Weight Package weight 750g

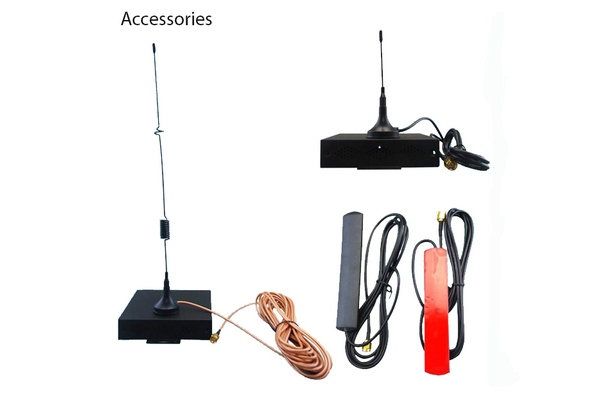

Accessories Adaptor,User Manual,Bracket,Screw
