JY-IPH5112E-4G-VF/JY-IPH5112E-4G-AF 4G Wireless IP Camera

 Tip: Click on the image to enlarge
4G Wireless IP Camera JY-IPH511-4G Scenes
4G Wireless IP Camera JY-IPH511-4G Multi-terminal access
4G Wireless IP Camera JY-IPH511-4G manual

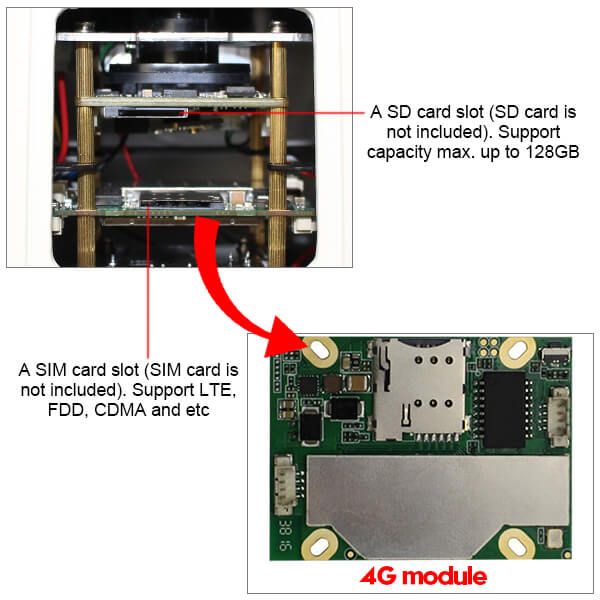

4G Wireless IP Camera JY-IPH511-4G internal
  Feature:
  4g Sim Card Camera

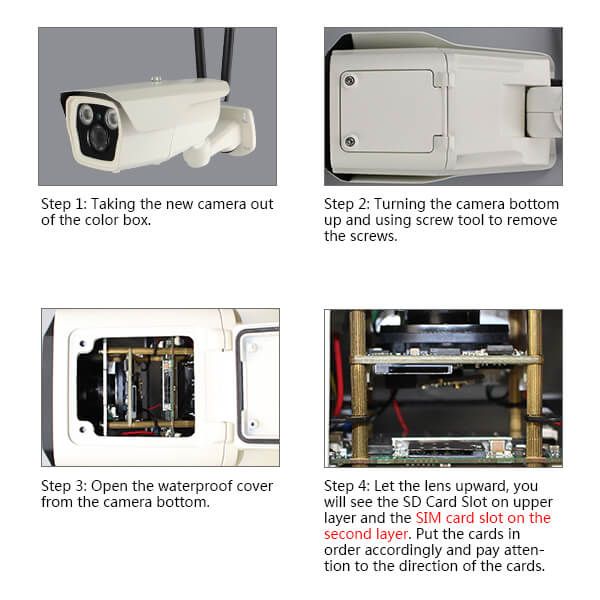

  Install 4G sim card for 4G IP Camera
  4G Security Camera with Sim Card
  3G 4G SIM Card Outdoor Wireless IP Camera
  4g Security Camera
  3g 4g Sim Card Camera
  4G HD IP outdoor security camera
  4G PTZ IP Camera
  4G SIM Card Security Camera WiFi
  4G/LTE Cellular Camera Systems
  3G/WCDMA 4G/LTE Cellular Camera
  It’s a real 3G/4G network camera, supports the 4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE.
  The Camera resolution Max 4.0MP. 2.0MP/1.3MP option .
  It supports maximum 32GB--128GB internal TF card storage. It supports 24-hours video recording,
  scheduled video recording,manual video recording, alarm video recording, video record searching, video record preview and video record download. The video record is stored as the standard AVI file.The system supports the 3G/4G hotspot function. The 3G/4G bandwidth can be shared by other WiFi devices when the WiFi AP mode is enabled.
  When you can’t run network wire to the IP camera, you can use a 3G/4G wireless camera system.
  Such as temporary construction site,farm,vehicle any place have 3G/4G covered is available .
  Support Network:
  4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE
  Support  Band:
  B1/B3/B7/B20/B38/B39/B40/B41/B26
  Support Band of frequencies:
  FDD LTE     Band7 / Band3/BAND1/BAND8
  TD-LTE Band38 (2570-2620MHz) / Band39 (1880-1920MHz) / Band40 (2300-2400MHz) Band41 (2496-2690MHz)
  WCDMA/1900/2100/2600MHz
  TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz)
  EDGE/GPRS/850/900/1800/1900MHz
  UMTS Band1 / Band2 / Band5 GSM 900 / 1800 / 1900 MHz
  Network Speed
  FDD-LTE/TD-LTE(4G):150MBPS/50MBPS
  WCDMA(3G):21MBPS/5.76MBPS
  TD-SCDMA(3G):2.8MBPS/2.2MBPS
Model No. JY-IPH5112E-4G-VF/JY-IPH5112E-4G-AF
4G Support Network 4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE
Support Band B1/B3/B7/B20/B38/B39/B40/B41/B26
Support Band of frequencies FDD LTE Band7 / Band3/BAND1/BAND8
TD-LTE Band38 (2570-2620MHz) / Band39 (1880-1920MHz) / Band40 (2300-2400MHz) Band41 (2496-2690MHz)
WCDMA/1900/2100/2600MHz
TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz)
EDGE/GPRS/850/900/1800/1900MHz
UMTS Band1 / Band2 / Band5 GSM 900 / 1800 / 1900 MHz
Network Speed FDD-LTE/TD-LTE (4G) :150MBPS/50MBPS
WCDMA (3G): 21MBPS/5.76MBPS
TD-SCDMA (3G): 2.8MBPS/2.2MBPS
Video Resolution 2.0MP 1920*1080P@30/25/fps
Video streaming HD(1920*1080P),VGA(640*360),QVGA(320*180)
Compression standard H.264
IR-Cut Built-in IR Cut.No color deviation indoor and outdoor
Lens Mount Varifocal Lens 6-22mm
Image Frame Rate 30fps maxmium,downward adjustable
Night Vision 4Pcs Array IR LEDs,IR distance up to 40 meters
Waterproof Product Type Metal Gun type/Waterproof outdoor use
Waterproof IP66
Network Ethernet RJ-45 Ethernet
Wireless IEEE 802.11 b/g/n,Security supports WEP,WPA WPA2 Encryption
Onvif Protocol Supports NVR real time monitoring,recording and playback
Alarm Motion Detection Yes
Alarm Setting Supports Email,Phone push
Alarm recording Yes
Storage MicroSD Card Supports up to 128G microSD card for recording and playback
Recording mode Manual Record,Alarm Record,Timing Record
View the video Support Remote video playback
System For Phone Support IOS and Android system smart phones or tablet PCs
For Windows PC CMS suports1-,4-,6-,8-,9,16-Channel IP Camera centralized monitor,record and playback on Windows PC
Weight Package weight 1000g
Accessories Adaptor,User Manual,Bracket,Screw
