| Focal Length | 2.8mm |
| Mount | M12 *P0.5 |
| Aperture (F/NO) | F2.4 ± 5% |
| Sensor Size | 1/2.7" & 1/3" |
| Back Focal Length | 4.5mm (in air) |
| Flange Back Length | 3.0mm |
| Iris | Fixed |
| MOD | 0.2m |
| Resolution | 3MP |
| Lens Construction | 6G |

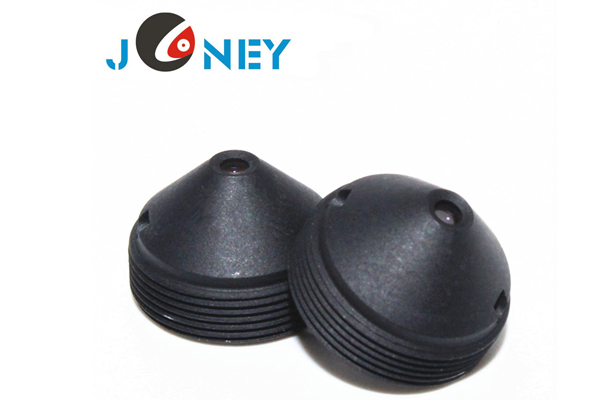

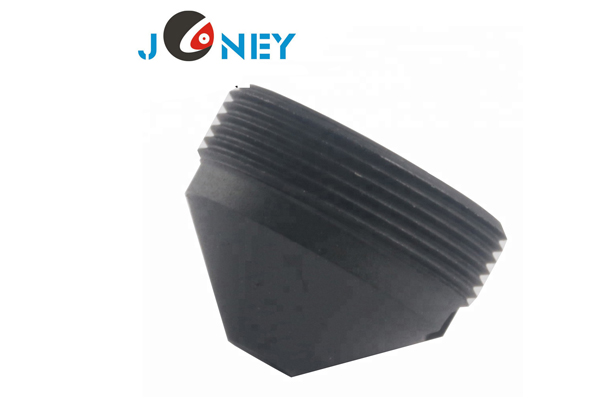

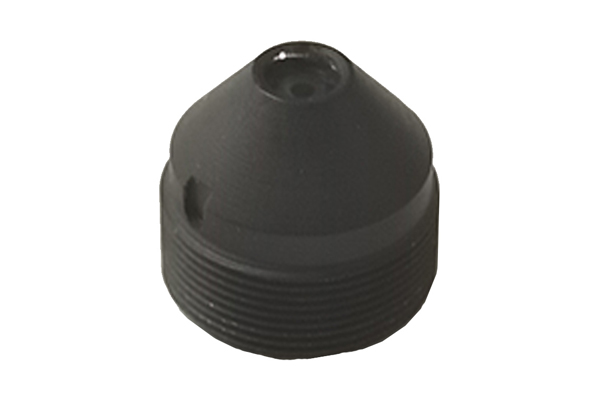

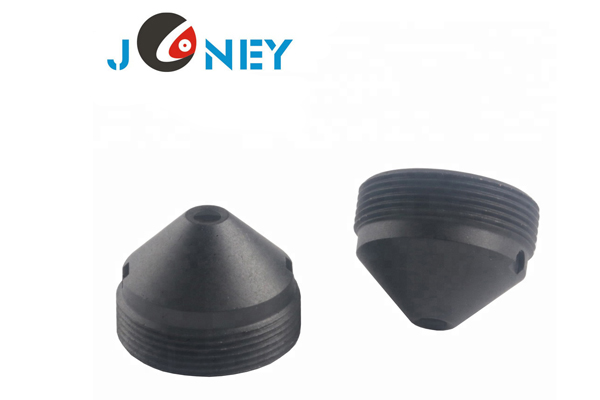

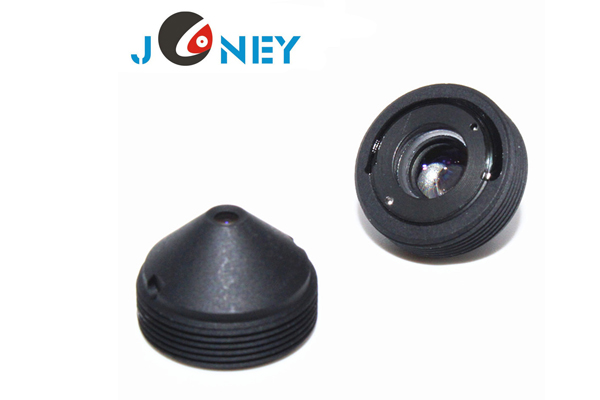

JY-M12-PH2.8-3MP-1/2.7F2.0 Pinhole lens
Tip: Click on the image to enlarge
